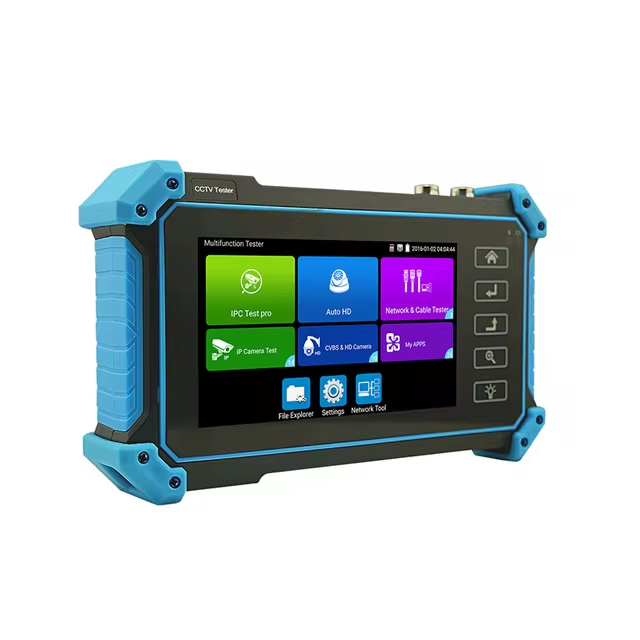

IPC-5200C Plus HD CCTV Accessory 8MP TVI/CVI/AHD/EX-SDI IPS touch screen camera tester

Model : IPC-5200C Plus

4K H.265/H.264, 8MP TVI, 8MP CVI, 8MP AHD, 8MP EX-SDI IP Camera Tester

Features

Camera test:

— 5.4 inch IPS touch screen, 1920*1152 resolution

— H.265 & H .264 IP, 4K video display via mainstream

— 8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record & playback ,coaxial PTZ control & call OSD menu *

— 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

— 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

— 8MP EX-SDI test, 3840 x 2160P 25/30FPS, coaxial PTZ & call OSD menu*

— HD-SDI, 3G-SDI test, 1920 x 1080P 25/30/50/60 FPS, coaxial PTZ & call OSD menu*

— Rapid ONVIF, Auto log in and display image, create testing report

— IPC TEST (Non-ONVIF test)

— CVBS camera test, PTZ controller

— DC12V/3A power output, camera can be powered from DC 12Votage

— Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

— CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

Cable test:

— Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report

— RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

— Digital cable tracer, search BNC cable, network cable and telephone cable from the mess cables

Other Functions:

— Network tool: Ping, IP scan, Port Flash ,DHCP server, Trace Route

— POE & power information, DC12V & PoE power and voltage output /input measurement

— Tester Play: Tester, android mobile phone and PC display at the same time

— VGA input, up to 2048 x 1152 60FPS*

— HD signal input, support 4K 30FPS*

— Traffic monitoring of the tester "LAN port", display upload and download speeds

— Customers self-update software, you can install apps with android version

— 7.4 V /3350mAh Lithium Ion Polymer Battery, after 3~4 hours charging , working time lasts 6 hours
