* 1/2.7" CMOS sensor
* 8MP wide-view resolution 4096x 1944P (19:9)
* 180 °wide-angle
* Low illumination 0.01Lux
* Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter,
* D-WDR, Mirror , Defogging
* Multiply Style OSD Overlay, Motion Detection, Privacy Mask
* RTSP and Ovif 17.06 compatible with many third-party NVR
* 264/H.265 dual-stream media server
* Easy-to-use P2P Cloud service
* Support user authentication, video data encryption
* Support Alarm Snapshot to Email and FTP
* Multiply WEB browser IE,Firefox 32bit ESR, Edge,Google Chrome,PC Client, Mobile APP remote access
* RJ45 100mbps network port, IEEE802.3af PoE
* Lightning protection 4000V
* Strong water-proof housing, IP66
* 2 pcs Warm light + 3pcs IR Array leds,IR distance:25-30M,White light distance:25-30M,Three light Modes:
Mode 1: Smart Dual Light
Mode 2: Pure Infrared Light
Mode 3: Pure White Light
* 2*6 2.8mm Fixed Lens
* Built-in Mic and speaker two-way audio
* With SD card slot ,support UP to 512GB SD card
* With reset button
My Store

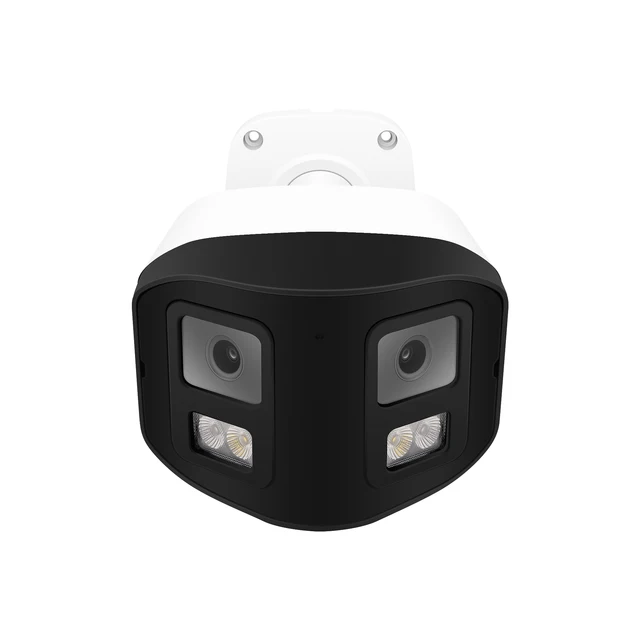

HD 4K 8MP Dual Light Dual Lens 180 Degree Wide-angle Panoramic CCTV IP POE Camera support Two-way Audio SD Card Slot
HD 4K 8MP Dual Light Dual Lens 180 Degree Wide-angle Panoramic CCTV IP POE Camera support Two-way Audio SD Card Slot
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Key Feature:
Technical Parameters
|
Model
|
IPCW738ADZ58A
|
|
Camera
|
|
|
Image Sensor
|
1/2.7" GC5623 CMOS x2
|
|
Effective Pixels
|
8 megapixels
|
|
Electronic Shutter
|
AUTO, 1/25s ~ 1/100000s
|
|
Min. Illumination
|
0.01Lux@F1.2(AGC ON)
|
|
Day/Night
|
Auto/Color/(B/W)/Timing
|
|
WDR
|
Digital WDR
|
|
White Balance
|
Auto/Manual
|
|
BLC /HLC
|
Support
|
|
DNR
|
2D/3D DNR
|
|
Other
|
Human body and Vehicle detection ,AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay
|
|
Encode
|
|
|
Video Standard
|
H.264/H.265/H.265+
|
|
Video Resolution
|
MainStream:20fps@4096x1944P
Sub stream: 20fps@1024x480 |
|
Video Bitrates
|
512Kbps - 8Mbps, VBR/CBR
|
|
Audio Standard
|
G.711-u/G.711-a/AAC
|
|
Built-in Mic
|
Yes
|
|
Built-in Speaker
|
Yes,Two-way audio
|
|
Smart Detection
|
Human body and Vehicle Detection
|
|
Led and distance
|
|
|
Led
|
2pcs warm-light Led + 3pcs IR Array Led
|
|
IR Distance
|
20-30 M
|
|
White light Distance
|
20-30 M
|
|
Lens
|
|
|
Focal length
|
2*F1.6 2.8 mm fixed lens
|
|
FOV
|
180°
|
|
Other FunctionS
|
|
|
With SD card slot ,support UP to 512GB SD card,with reset button
|
|
|
Network Services
|
|
|
Protocol
|
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.
|
|
P2P
|
Yes
|
|
Web
|
IE , Firefox,Edge, Google Chrome etc.
|
|
Media
|
CMS, Android, IOS
|
|
OVIF
|
17.06 compatible
|
|
General
|
|
|
Network Port
|
1-RJ45, 100Mbps, POE optional
|
|
Power Supply
|
12 VDC ± 10%
|
|
Power Consumption
|
< 10 W
|
|
Operating Temp.
|
-30℃-(+60)℃, 10%-90%RH
|
