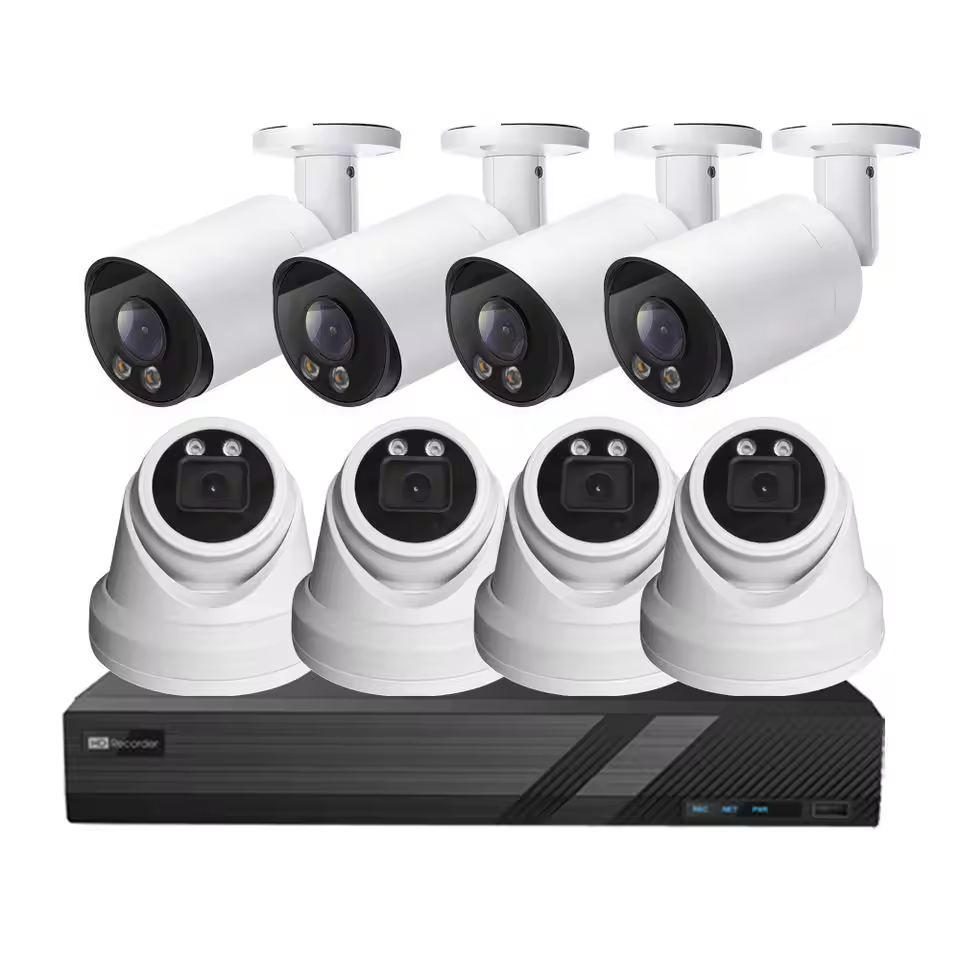

8CH 4K POE NVR CCTV System Kit 8PCS 5MP Bullet and Dome Colorvu IP POE Camera 7/24 Colorful Vision
8CH 4K POE NVR CCTV System Kit 8PCS 5MP Bullet and Dome Colorvu IP POE Camera 7/24 Colorful Vision
Feature:
[Expandable System, 24/7 Reliable Recording]--The NVR recorder support up to 8 cameras, you can add 4 more cameras; 24/7 reliable recording, up to 10TB per SATA; employ H.265 video standard to save storage space.
[5MP Super HD, Audio & Video]-- View in 5MP Ultra-clear picture with exquisite picture quality, Resolution 2592*1944. Delivers 2.5 times the clarity of 1080p. Built-in microphone optional, audio range up to 15ft; IR up to 100ft; 100° Angle; IP66 weatherproof.

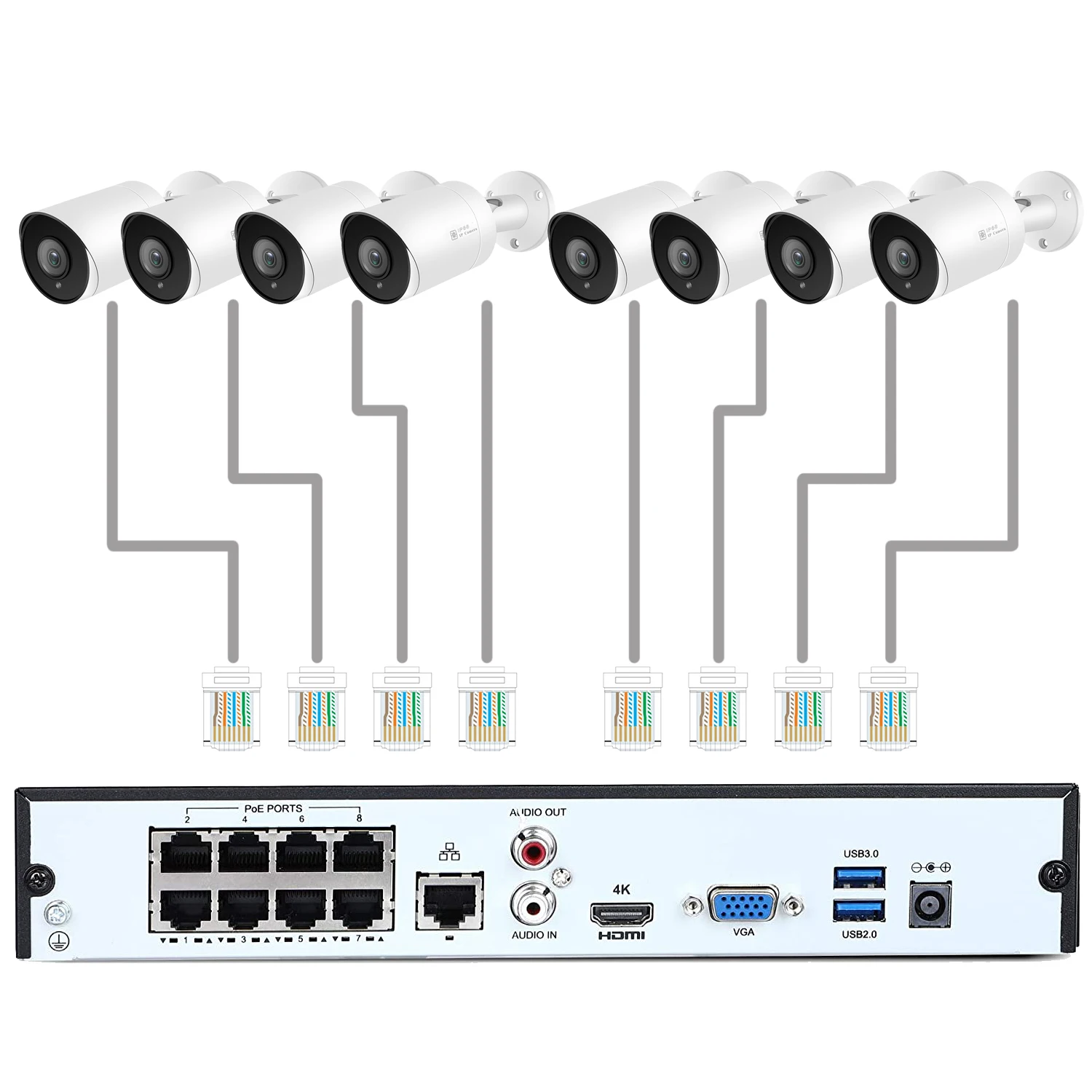

[Power over Ethernet, Plug & Play]-- A single network cable provides both power and video transmission, allowing you to position your cameras anywhere without a power outlet nearby. It can run up to 330ft CAT6 8-pin Ethernet cable, great for DIY users.
[Smart Human Body / Vehicle Detection]-- Detect human body/vehicle among moving objects, trigger NVR recording and motion alerts to mobile. Save storage space.
[Easy Remote Access & Playback, Real-Time Motion Alert]-- Easy live view & remote playback with free App on your smart phone and computer from anywhere anytime; receive motion alerts when motion is detected.
[24/7 Customer Support and 2 Year Warranty]
Technicial Specifications
|
Model |
NVRKITCZ49EA/CB97BA |
|
Camera |
|
|
Image Sensor |
1/2.8" S0ny CMOS |
|
Effective Pixels |
5 megapixels |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux,F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
BLC /HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay |
|
Encode |
|
|
Video Standard |
H.264/H.265 |
|
Video Resolution |
Main Stream: Sub stream: 25fps@D1/VGA/360P/CIF, etc. |
|
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a |
|
Built-in Mic |
Optional |
|
OSD Overlay |
Title and Time overlay |
|
IR Led |
|
|
IR Led |
2PCS Soft & Warm Supplemental Light |
|
IR Distance |
20-30M |
|
Lens |
|
|
Focal length |
2.8 mm F1.0 Starlight Lens |
|
Optional Function |
|
|
Internal Microphone/SD Card Slot |
|
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox (32bit esr), etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, POE |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
< 8 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
