* 1/3" CMOS sensor
* 6MP HD resolutionoutput
* Ultra low illumination 0.01Lux
* Day/ Night (ICR), AWR, 2D/3D-DNR, IR-CUT
* D-WDR, Motion Detection, Human and Vehicle Detection, Privacy Mask, Flip
* RTSP and Onvif 17.06 compatible
* 265/ H.264 dual-stream media server
* Easy-to-use P2P Cloud service
* Multi web browser, PC Client, mobile APP remote access
* RJ45 100mbps network port, IEEE802.3af PoE
* Lightning protection 4000V
* Strong water-proof housing, IP66
* 2pcs Warm lightLeds, Warm light distance 20-30 meters
* 8mm F1.0 fixed lens
* Microphone optional
My Store

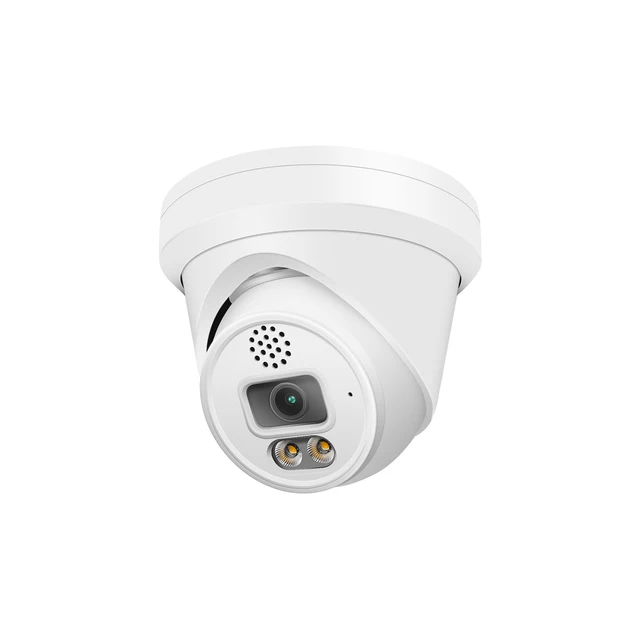

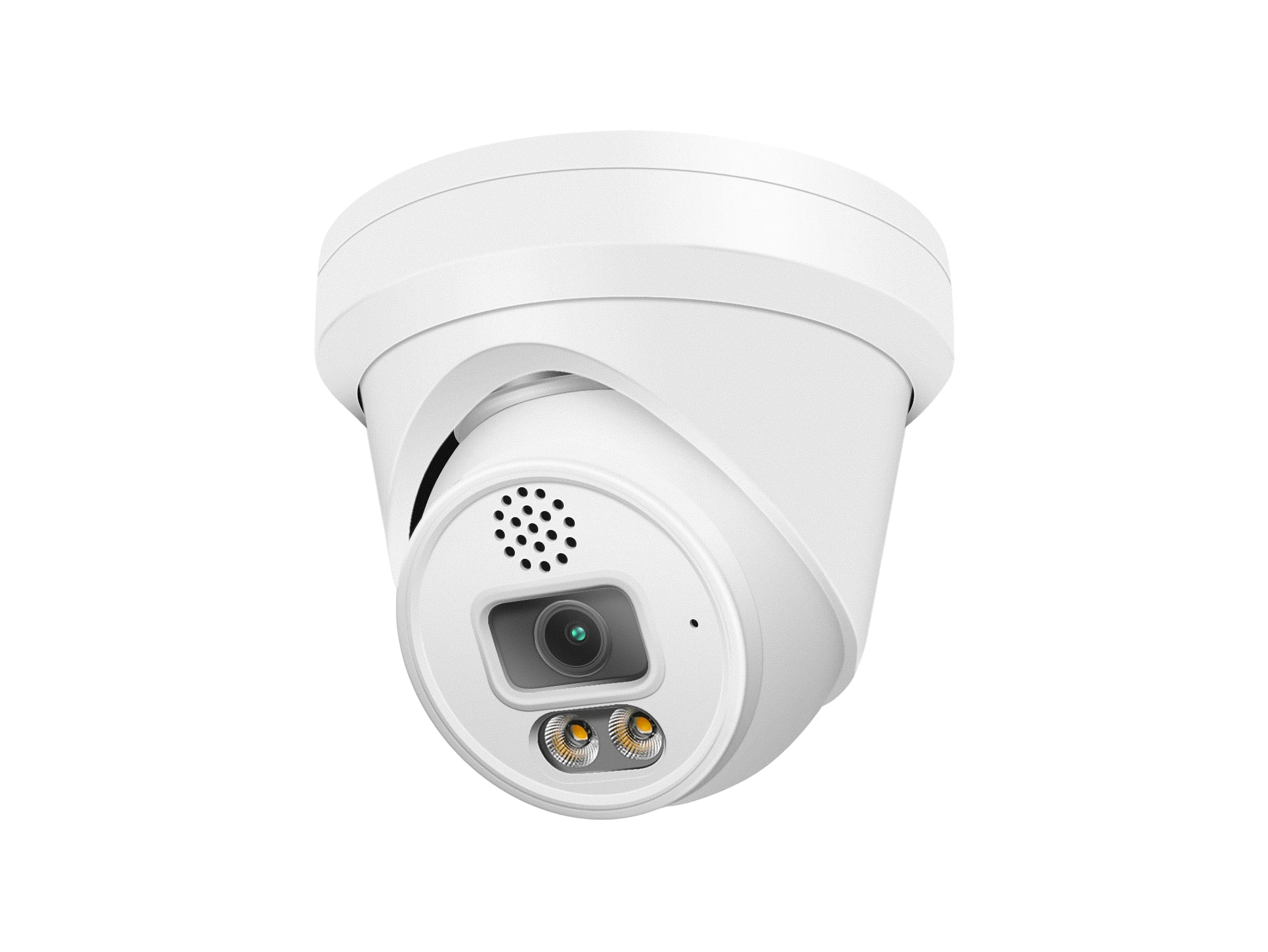

6mp full-color indoor security camera face detection cross-line detection support two-way audio Hik NVR Compatible
6mp full-color indoor security camera face detection cross-line detection support two-way audio Hik NVR Compatible
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
key Features
Intelligent featurs

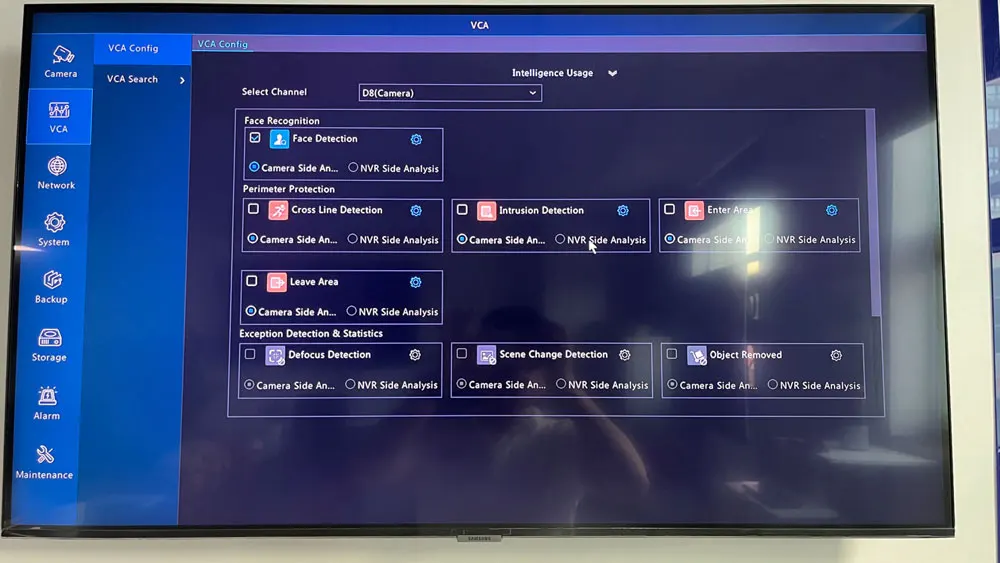

Face detection, cross-line detection, intrusion detection, enter/leave area, human/vehicle detection.
Specification
|
Model
|
IPCFCB97KA
|
|
Camera
|
|
|
Image Sensor
|
1/3" GC4653 CMOS
|
|
Effective Pixels
|
3072(H)×2048 (V)
|
|
Electronic Shutter
|
AUTO, 1/25s ~ 1/100000s
|
|
Min. Illumination
|
AUTO/Manual: 1/10s ~ 1/10000s, shutter threshold
|
|
Day/Night
|
Auto/Color/(B/W)/Timing
|
|
WDR
|
Digital WDR
|
|
White Balance
|
Auto/Manual
|
|
BLC/HLC
|
Support
|
|
DNR
|
2D/3D DNR
|
|
Light Control
|
Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination
|
|
License Plate Mode
|
Yes
|
|
Other
|
Multi-lines OSD, Privacy Mask, Flip
|
|
Encode
|
|
|
Video Standard
|
H.264/H.265/H.265+
|
|
Video Resolution
|
Main Stream:
25fps@6MP(3072x2048)/5MP(2592x1944), 30fps@4MP/3MP/1080P/720P Sub stream: 30fps@D1/VGA/360P/CIF, etc. |
|
Video Bitrates
|
64Kbps - 8Mbps, VBR/CBR
|
|
Audio Standard
|
G.711-u/G.711-a/AAC
|
|
Built-in Mic
|
Optional
|
|
Smart Detection
|
|
|
Motion Detection
|
Support
|
|
Target Detection
|
Human and Vehicle Detection
|
|
LED
|
|
|
Led
|
2pcs Warm lights
|
|
Distance
|
20-30 M
|
|
Lens
|
|
|
Focal length
|
2.8 mm F1.0 fixed lens
|
|
Language
|
|
|
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian
. |
|
|
Network Services
|
|
|
Protocol
|
HTTP/RTSP/FTP/NFSv3/SMTP/DHCP/NTP/RTMP, etc.
|
|
P2P
|
Yes
|
|
Web
|
IE, Firefox, Chrome, Edge, Safari, etc.
|
|
Media
|
CMS, Android, IOS
|
|
ONVIF
|
17.06 compatible
|
|
General
|
|
|
Network Port
|
1-RJ45, 100Mbps
|
|
Power Supply
|
12 VDC ± 10%
|
|
POE
|
802.3af/at 48V
|
|
Power Consumption
|
< 8 W
|
|
Operating Temp.
|
-20℃-(+60)℃, 10%-90%RH
|
|
Operating Temp.
|
-30℃-(+60)℃, 10%-90%RH
|
|
Power Consumption
|
< 8 W
|
|
Operating Temp.
|
-30℃-(+60)℃, 10%-90%RH
|
