5MP underwater waterproof cameras downhole inspection aquaculture pipe aquarium camera with H.265 underwater CCTV camera
5MP underwater waterproof cameras downhole inspection aquaculture pipe aquarium camera with H.265 underwater CCTV camera
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Specification
|
Model
|
3PBX10
|
|||
|
Lens
|
5MP 2592×1944P 20FPS
4MP 2560×1440P 20FPS
3MP 2304×1296P 30FPS
2MP 1920×1080P 30FPS
1/2.8 Progressive Scan CMOS ,color 0.01Lux F1.2,black/white 0.001Lux F1.2
|
|||
|
Fill light (mobile / computer / NVR settings)
|
3PCS white light, 1000 lumens
|
|||
|
4PCS infrared lights, 1000 lumens
|
||||
|
Image color
|
Two modes: 1: white light - full color; 2: infrared light - automatic color to black;
|
|||
|
Supporting device
|
Support iOS, Android, computer, NVR.
|
|||
|
Supporting agreement
|
IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,RTSP,ONVIF;SDK Secondary development
|
|||
|
Material
|
stainless steel
|
|||
|
Waterproof level
|
IP68 (permanently installed underwater)
|
|||
|
Water pressure resistance
|
Maximum 500Kpa (maximum water depth 50M)
|
|||
|

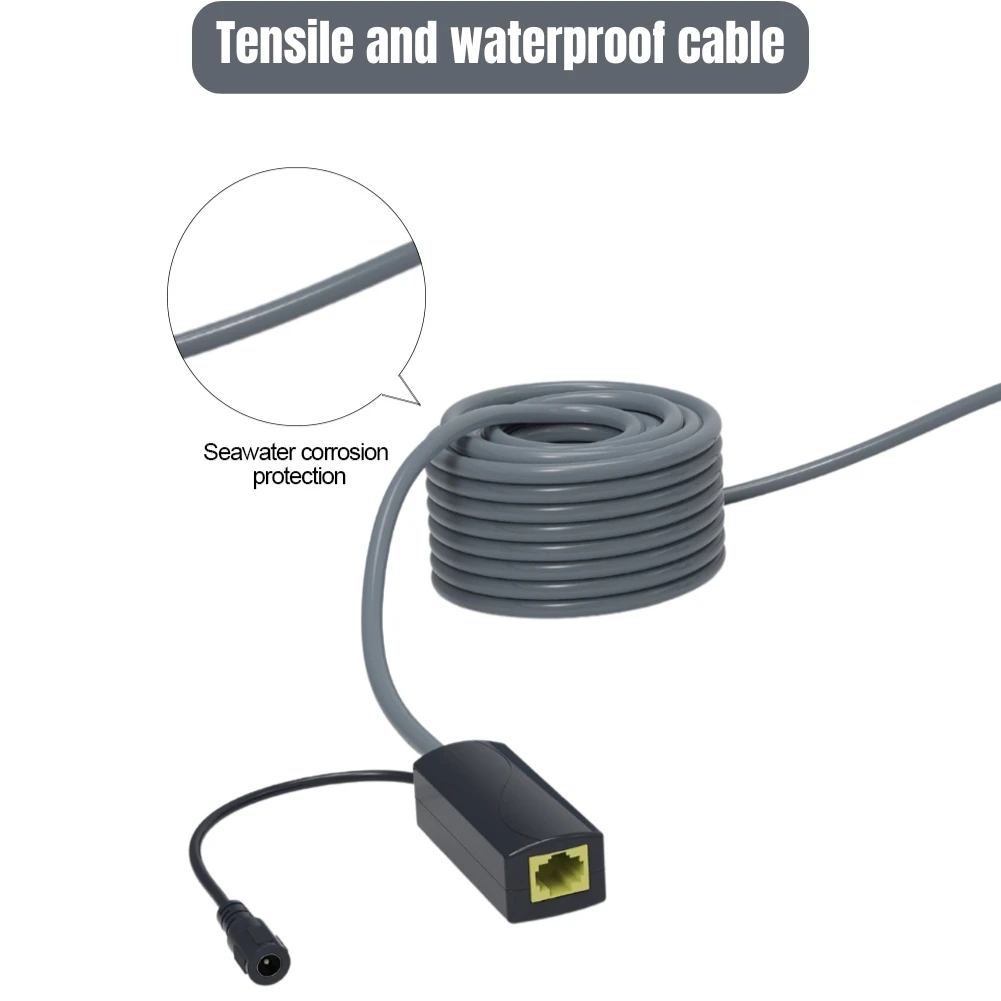

Cable
|
The default length is 10 meters, made of PU material, with a diameter of 7mm. It is resistant to 60KG tension, aging, friction,seawater corrosion, and special underwater wire.
|
|||
|
Use environment
|
Land/vehicle/ship/surface/underwater (fresh water and seawater)
|
|||
|
Working humidity
|
0%-100%
|
|||
|
Working temperature
|
-20°~55°
|
|||
|
Power Supply
|
DC12V/POE 48V-54V IEEE.802.af power input and output pins: 1, 2 (+)/3, 6 (-); 4，5（+）/ 7，8（-）;
|
|||
|
Camera size
|
⌀70*100mm
|
|||
|
Weight
|
Camera: 1.6KG (excluding cable), cable: 0.6KG, whole box: 2.75KG
|
|||
|
Package
|
1 * Camera
1 * Camera bracket accessories
1 * U disk (software and manual)
|
|||
Product Description
Good corrosion resistance
Seawater resistant stainless steel, seawater and freshwater environment, because of its excellent corrosion resistance, can be used in places with high acidity and alkalinity.
It is resistant to 60KG tension, aging, friction, seawater corrosion, and special underwater wire.
HD Underwater Camera
5MP UNDERWATER PHOTOGRAPHY - can capture footage at 1080P resolution for photos.Combined with 2.8mm lens.Fast focusing speed, stable imaging quality, and accurate focusing.
