Shenzhen Moonkvision Industrial Corp.Ltd
4Ch NVR KIT 5MP POE Camera NVR KIT IP Camera NVR Set Face Detection Motion Detection Two-Way Audio Dome Bullet Outdoor Security Xmeye
4Ch NVR KIT 5MP POE Camera NVR KIT IP Camera NVR Set Face Detection Motion Detection Two-Way Audio Dome Bullet Outdoor Security Xmeye
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
POE 5.0 Megapixels 4 Channels IR/Full Color IP Camera NVR Security Surveillance System

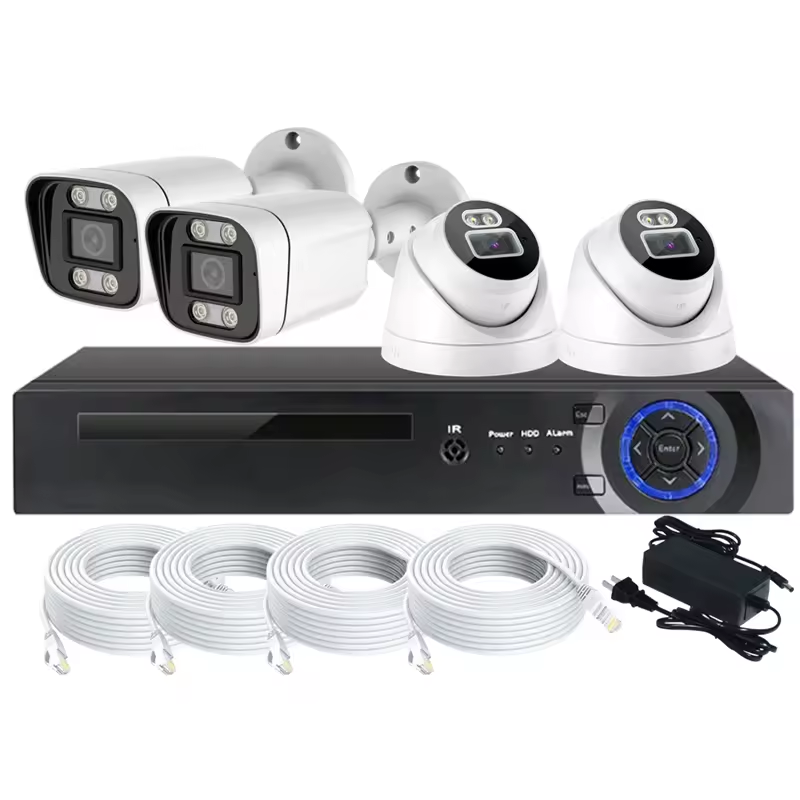

The complete kit includes:
1) 4PCS*two-way audios Double Light(IR/White) POE 5 megapixels IP bullet waterproof/indoor dome cameras with 3.6mm lens;
2) 1PC*4Chs POE NVR without HDD (NVR supports max. 1PC 12TB HDD, if you need HDD from us, please contact to add);
We supply 500GB/1TB/2TB/3TB/4TB/6TB/8TB/10TB/12TB HDD (by clicking here to know more information on HDDs)
3) 4PCS*20meters CAT5 cable with RJ45 connecters;
We supply 20M / 30M / 50M / 100M CAT5 cable with 8-core high quality (by clicking here to know more information on CAT5 cables)
4) Support plug-and-play function;
5) Support ONVIF;
6) Support face detection, humanoid detection;
7) Support 64 channels VMS software viewed on PC;
8) 16 channels APP viewed on mobile: Xmeye.
|
Tech. Parameters for Camera
|
|
|
Model
|
4Chs POE Camera
|
|
Wide Angle Lens
|
3.6mm fixed focus lens
|
|
Double Light
|
IR/White LEDs
|
|
Low Lux
|
0.01lux @ F1.2
|
|
Video Pixel
|
5 megapixels (5MP:2592*1944@ 20fps)
|
|
Audio
|
Two-way audios (build-in microphone and speaker)
|
|
Camera Power Mode
|
POE (Power over ethernet)
|
|
Shell Material
|
Metal
|
|
Waterproof Level
|
IP66
|
|
Working Temperature
|
0-55degree
|
|
Size
|
240*240*140mm(L*W*H)
|
|
Weight
|
0.4KG
|
|
Tech. Parameters for POE NVR
|
||
|
|
Model
|
4Chs POE NVR
|
|
System
|
Processor
|
Sigmstar
|
|
OS
|
Embedded LINUX operating system
|
|
|
Video
|
Video Access
|
4Ch camera 8MP
|
|
Local Playback
|
2 way 8MP
|
|
|
Video Compression
|
265+265/264
|
|
|
Audio
|
Audio Compression
|
G.711A
|
|
Intercom
|
Support
|
|
|
Record
|
Record Mode
|
Manual,Alarm,Motion Detection,Timing
|
|
Search Mode
|
Search by Time/Calendar/Event/Channel/Face
|
|
|
Record storage
|
HDD/Network/Cloud
|
|
|
Backup method
|
USB,Mobile hard disk,network backup,SATA
|
|
|
Connector
|
Video Output
|
1*HDMI
|
|
Video Output
|
1* VGA
|
|
|
Network Interface
|
1*RJ45 10M/100M Adaptive Ethernet port
|
|
|
POE
|
4pcs standard POE port
|
|
|
Audio 1/0
|
1/1(3.5mm)
|
|
|
Alarm 1/0
|
0/0
|
|
|
USB Interface
|
2 *USB 2.0
|
|
|
Storage Type
|
1 * SATA Interface(Max 12TB)
|
|
|
Other
|
Working Environment
|
Temperature:0℃-+55℃,humidity:10%-90% RH
|
|
Power
|
52V/1.38A
|
|
|
Consumption(no HDD)
|
<10W(w/o HDD)
|
|
|
KG
|
1.4KG
|
|
|
Size
|
255mm(L)*225mm(W)*45mm(H)
|
|
