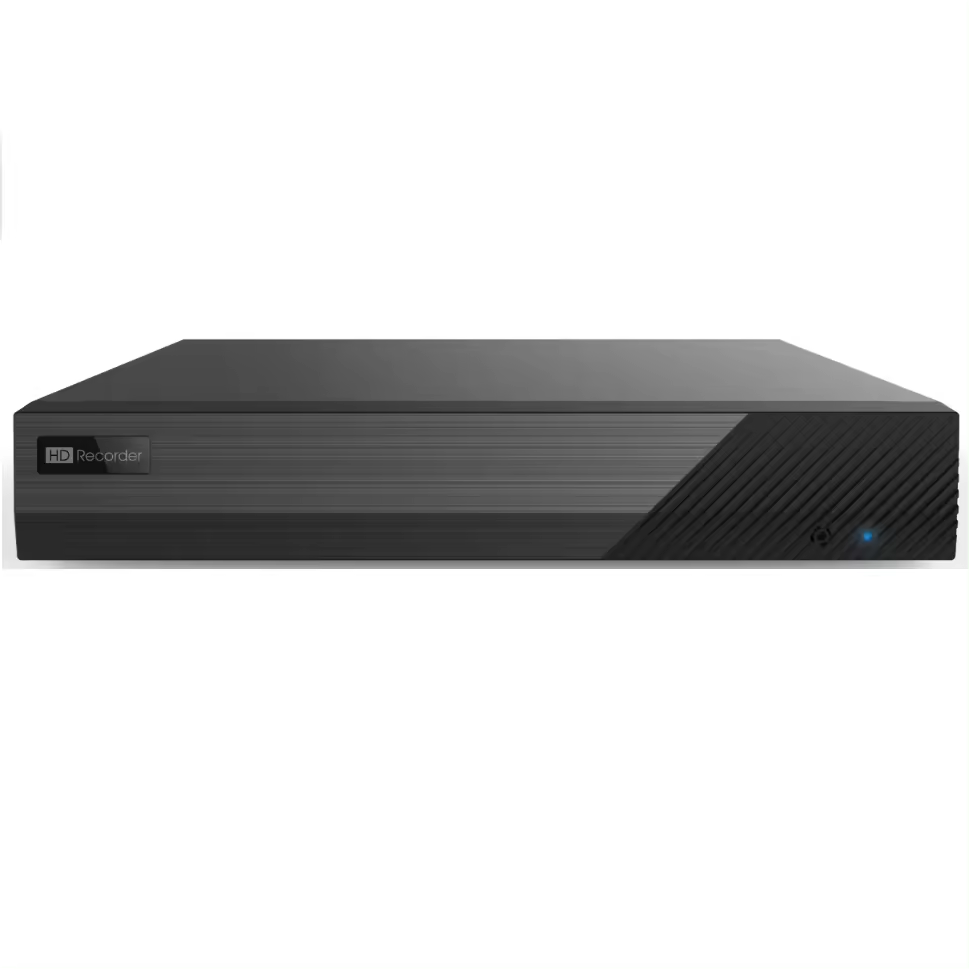

4CH 5 IN 1 XVR H.265 5MP DVR
4CH 5 IN 1 XVR H.265 5MP DVR
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
*4 CH DVRs support 5MP / 4MP / 3MP /1080P / 960P /720P IP video input
*Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
* Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
*Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
* Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
* Multi-mode recording: manual /
timed / motion / AI recording
* Playback : 4 CH simultaneously playback
* Search: time slice, time, event, tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Authorization management, log review and device status review
Support 1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS
timed / motion / AI recording
* Playback : 4 CH simultaneously playback
* Search: time slice, time, event, tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Authorization management, log review and device status review
Support 1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS
Specification
|
Model
|
XVR5104
|
|
|
System
|
OS
|
Embedded Linux
|
|
Video |
Input
|
BNC 4
BNC interface (1.0Vp-p; 75Ω) TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 |
|
Resolution |
TVI/ AHD : 5MP/ 4MP/ 3MP/ 1080P/ 720P/ WD1 CVI : 4MP/ 3MP/ 1080P/ 720P/ WD1
|
|
|
IP Input
|
2CH Up to 5MP@25fps
|
|
|
Output |
HD&MI 1 : 1920 * 1080 / 1280 * 1024 / 1024 * 768
VGA 1 : 1920 * 1080 / 1280 *1024 / 1024 * 768 BNC 1 : CVBS ( used as the main or spot output ) |
|
|
Compression
|
H.264/H.265
|
|
|
Multi-screen Display
|
1/4/6/8/9 |
|
|
Audio |
Input
|
RCA 1
|
|
Output
|
RCA 1
|
|
|
Two-way audio
|
Take up channel one audio input, G.711(U/A) |
|
|
Record |
Resolution
|
5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1
|
|
Frame Rate |
Analog Channel: 5MP Lite :10fps; 4MP Lite/1080P : 12fps (PAL)/15fps (NTSC); 1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC) IP Channel: 25fps (PAL)/30fps (NTSC) |
|
|
Bit Rate
|
32Kbps ~ 4Mbps |
|
|
Mode
|
Manual, timer, motion
|
|
|
Play back |
Playback
|
4 CH
|
|
Search
|
Time slice / time / event / tag search
|
|
|
Smart Search |
Highlight colors to display the camera record in a certain period of time, different colors refer to different record
events |
|
|
Function
|
Play, pause, FF, FB, digital zoom, etc.
|
|
|
Alarm |
Mode
|
Manual, motion, exception
|
|
Input
|
No
|
|
|
Output
|
No
|
|
|
Triggering
|
Record, snap, preset, e-mail, etc.
|
|
|
Network |
Interface
|
RJ45 100Mbps 1
|
|
Protocol
|
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
|
|
|
Client Connection
|
Max. 5 users access
|
|
|
Accss/Transfer Bandwidth |
16/40Mbps |
|
|
Mobile Device
|
OS
|
iOS, Andriod
|
|
Storage |
HDD |
SATA 1 , up to 6Tb
|
|
Backup |
Local Backup
|
U disk, USB removable HDD
|
|
Network Backup
|
Yes
|
|
|
Port |
RS485
|
RS485 1 , connect to PTZ or keyboard
|
|
USB
|
USB 2.0 2 ( i n the rear panel )
|
|
|
Remote Controller
|
Optional
|
|
|
Others |
Power Supply
|
DC12V / 1.5A
|
|
Consumption
|
≤8W( without HDD)
|
|
|
Dimensions
|
255mm 2 33mm 4 2 mm( W D H )
|
|
|
Work Environment
|
-10 ～ 50 ℃，10% ～ 90% humidity
|
|
