32ch 4K 5mp H.265 Indoor Outdoor Ip Wired Video Surveillance Security Audio Poe Camera Nvr Kit Cctv System Set
32ch 4K 5mp H.265 Indoor Outdoor Ip Wired Video Surveillance Security Audio Poe Camera Nvr Kit Cctv System Set
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Features & Specification
Features
• Simplify POE installation,Easy to setup.Camera no need to connect power cable or adapters or switch, lower risk of electric leakage
• Support multi-languages
• Audio Record Camera.Built-in microphone records what people say, make it authentic with sound video recording
• Advanced H.265 Video Compression.Faster loading speed,more smooth video ;
• Advanced Motion Detection Recording and E-mail Alerts.Remote Access Anytime, Anywhere • Support HDMI VGA HD output; • Support ONVIF; access third party; • Easy access via free Mobile Device APP"XMeye" & PC Software"CMS";
Package Details

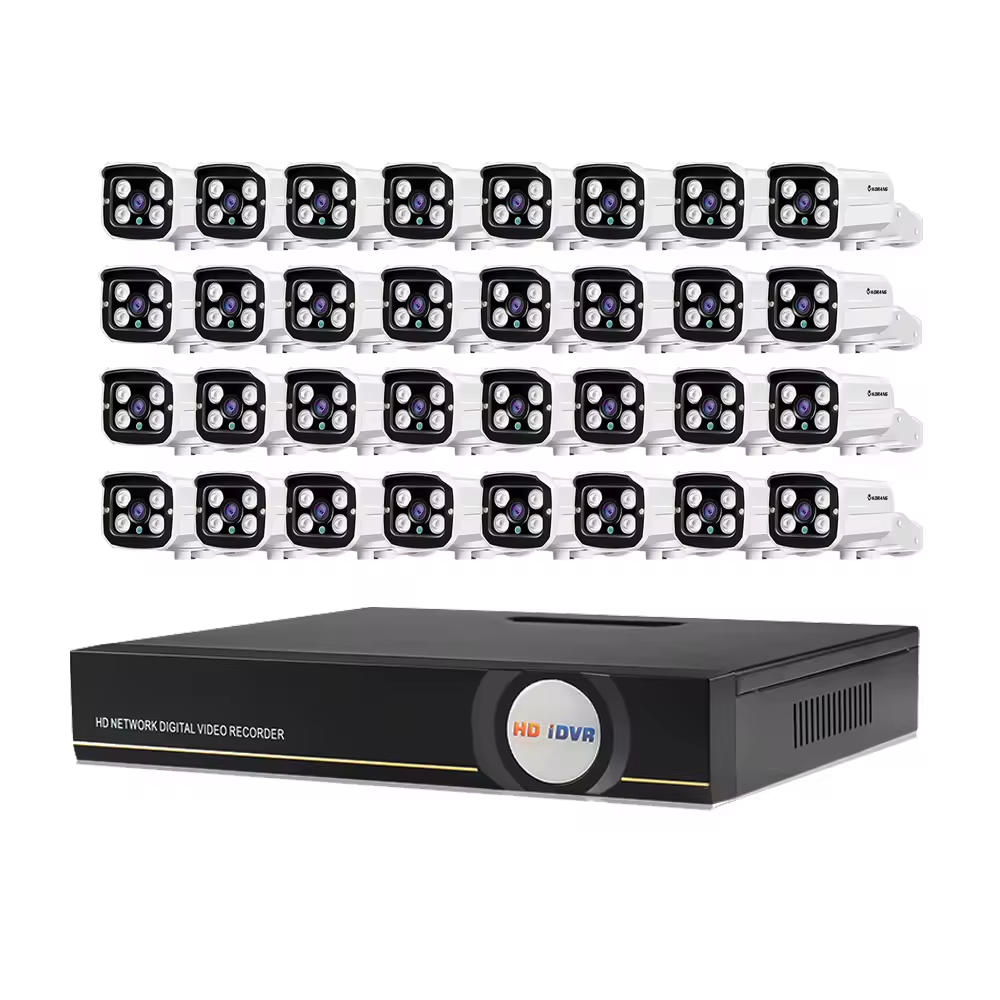

1.1* 32ch IP NVR; 2.32* POE Camera(32Bullet); 3.2* POE Switch; 4.1* NVR Power Adapter; 5.2* Switch Power Adapter; 6.1* USB Mouse; 7.32* Mouting screw bag; 8.100* RJ45 Connector 9.1* English User Manual.
Specification
|
POE NVR ( with Audio out )
|
||
|
Model
|
2P323
|
|
|
System
|
Main processor
|
Hi3536C
|
|
Operating system
|
Embedded LINUX
|
|
|
System resource
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
|
|
Interface
|
Operating interface
|
16bit real color GUI interface support mouse operation
|
|
Preview
|
1/4/9/16/32
|
|
|
Video
|
Video input(IP)
|
8*4K/32*5M/32*1080P
|
|
Access bandwidth
|
300Mbps
|
|
|
Forwarding bandwidth
|
240Mbps
|
|
|
Video standard
|
PAL; NTSC
|
|
|
Video compression
|
H.265++/H.265+/H.265/H.264
|
|
|
Display quality
|
Max 4K
|
|
|
Playback quality
|
4K/5MP/1080P
|
|
|
Decode
|
1*4K/2*5MP/4*1080P
|
|
|
Motion Detection
|
Support (Depend on camera)
|
|
|
Audio
|
Audio compression
|
G.711A
|
|
Intercom
|
Unsupport
|
|
|
Record & playback
|
Record mode
|
manual>alarm>motion detection>timing
|
|
Local Playback
|
1*4K/2*5MP/4*1080P
|
|
|
Search mode
|
Search by time, calendar, event, channel
|
|
|
Storage & backup
|
Video storage
|
HDD, network
|
|
Backup mode
|
Network, USB hard disk, USB burner, SATA burner
|
|
|
External Interface
|
Video output
|
1ch VGA,1ch HDMI
|
|
Audio I/O
|
0/1
|
|
|
Alarm I/O
|
0/0
|
|
|
Network interface
|
1*RJ45 10M/100M/1000M Adaptive Ethernet port
|
|
|
PTZ control
|
Support kinds of PTZ protocols
|
|
|
USB
|
2* USB 2.0 ports
|
|
|
HDD
|
2 SATA ports,max support 6TB (HDD is option)
|
|
|
ESATA
|
No
|
|
|
Serial interface
|
No
|
|
|
PC/Laptop Remote
|
Support web, CMS, center platform management software XMEYE
|
|
|
General
|
ONVIF
|
Support ONVIF, access third party
|
|
Power
|
12V/6A
|
|
|
Power Consumption
|
＜10W(Without HDD)
|
|
|
Working environment
|
Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa
|
|
|
Size(W×D×H)(mm)
|
320*240*50mm
|
|
|
Weight(kg)
|
1.5kgs
|
|
|
Package Quantity
|
10pcs
|
|
|
Package Size(W×D×H)(mm)
|
640*340*490mm
|
|
|
Package Weight(kg)
|
15.8kgs
|
|
|
POE Audio Camera(support onvif)
|
|||
|
Model
|
BT01-POE3MP
|
BT01-POE5MP
|
|
|
Camera
|
Image Sensor
|
Hi3516EV200+SC4239
|
Hi3516EV300+IMX335
|
|
Megapixel
|
3MP(2560*1440)
|
5MP( 2592*1944)
|
|
|
Lens
|
3.6mm default (6mm optional)
|
||
|
Min.illumination
|
0.1LUX/F1.2
|
||
|
Day&Night mode
|
IR CUT
|
||
|
Night Vision distance
|
0-20m Night Vision
|
||
|
Video
|
Video compression standard
|
H.265X / H.264
|
|
|
Video streaming
|
Dual streaming
|
||
|
Video resolution
|
JPEG stream :(Monitoring for mobile phones)
|
||
|
Video frame rate
|
25fps
|
||
|
Image settings
|
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
|
||
|
Image enhancement
|
Backlight compensation,Automatic white balance
|
||
|
Digital WDR, 3D digital noise reduction
|
|||
|
Audio
|
Audio compression standard
|
G.711A
|
|
|
Audio Input
|
Support, Built-in Microphone 10M
|
||
|
Audio Output
|
Support,can connect external Speaker
|
||
|
Function
|
Motion detecting
|
Support 1 independent screen detection
|
|
|
Alarm linkage
|
To mailbox,FTP server,Micro SD card,message push
|
||
|
Storage
|
Storage by NVR
|
||
|
User management
|
Supports user and rights management
|
||
|
Network protocol
|
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP
|
||
|
DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
|
|||
|
Connection protocol
|
Support ONVIF 2.4(backward compatible)
|
||
|
Interface
|
Power interface
|
1*5.5mm power interface
|
|
|
Ethernet
|
1*RJ45 & Antenna 10M/100M Adaptive Ethernet Interface
|
||
|
Reset button
|
Support
|
||
|
Power Supply
|
Power supply
|
DC 12V 2A
|
|
|
Power consumption
|
5W
|
||
|
General
|
Working environment
|
Temperature: '-5—+50℃，Humidity:10%—90%
|
|
|
Material
|
Metal Housing,Indoor and outdoor Use
|
||
|
Installation
|
Wall
|
||
|
Size(W×D×H)(mm)
|
65*65*95mm
|
||
|
Weight(kg)
|
0.4KG/PC
|
||
|
Package Quantity
|
30PCS
|
||
|
Package Size(W×D×H)(mm)
|
530*320*400mm
|
||
|
Package Weight(kg)
|
13.2KG/CTN
|
||
Products Description
5MP HD Display
5MP 2592*1944 High definition image, super infrared night vision, H265 Video

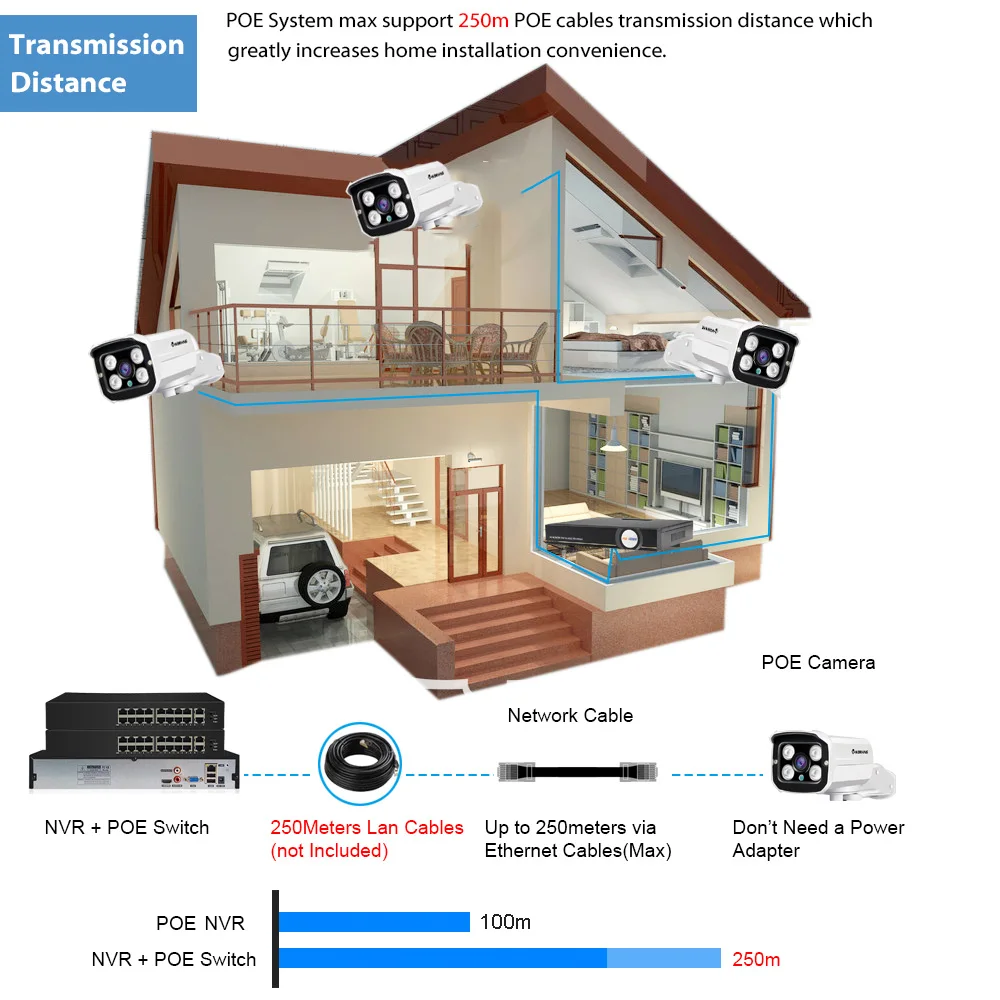

POE Advantage, Why Choose POE ?
Simplify POE installation,Easy to setup.Camera no need to connect power cable or adapters, lower risk of electric leakage,32ch need connect POE Switch,the Transimission Distance up to 250meters.
Long transmission distance
NVR+POE Switch system suppport max 250m cables transmission distance,which greatly increases installation convenience.
Support Multi-Languages
English,Russian,Italian,Portuguese,Spanish,French,Germany,etc……
