Shenzhen Moonkvision Industrial Corp.Ltd
24CH NVR KIT IP 4K CCTV POE Security Camera System 24 Channel Indoor Outdoor De Surveillance Full HD Set Price With Audio Recording
24CH NVR KIT IP 4K CCTV POE Security Camera System 24 Channel Indoor Outdoor De Surveillance Full HD Set Price With Audio Recording
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
24chs 4.0/5.0/8.0Megapixel POE Kits

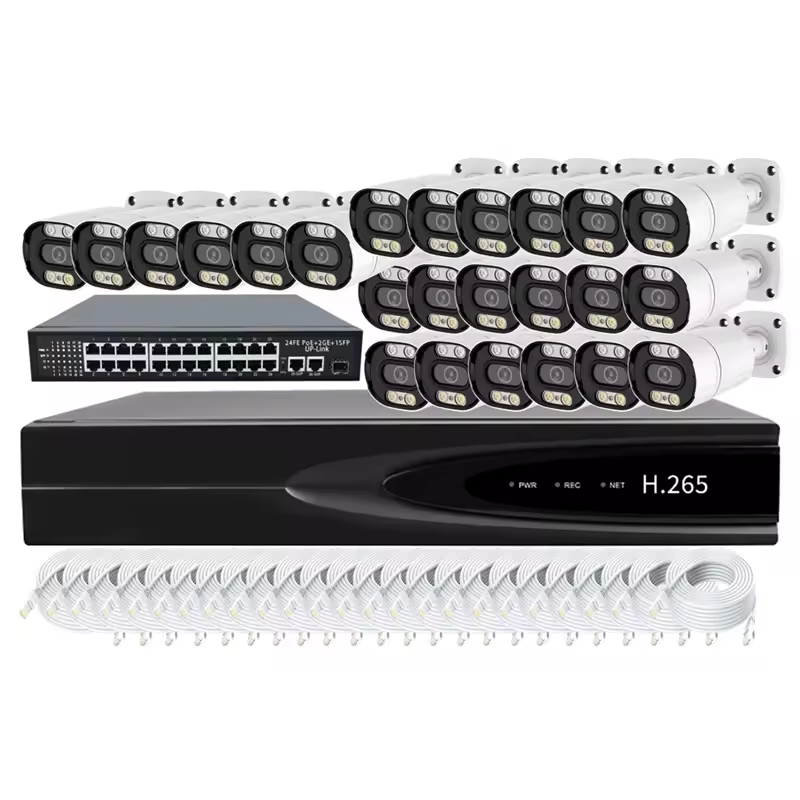

Complete kit including: 1*32chs H.265 Nvr(Support 2pcs HDDS). 1*24chs POE switch(10/100mbs) 2*1meters cat5 cabble. 32*2ways audios(TF card slot) IR/Full color POE IP Bullet camera 24*20m RJ45 cable
POE System
Only a single Ethernet cable is needed to transmit video signal and power the camera simultaneously, thus you don't need to use a separate power adapter to plug each camera into the nearby power supply. Safe, stable and reliable power transmission is always guaranteed.
Only a single Ethernet cable is needed to transmit video signal and power the camera simultaneously, thus you don't need to use a separate power adapter to plug each camera into the nearby power supply. Safe, stable and reliable power transmission is always guaranteed.
|
Camera Specification
|
|
|
Model
|
NVRKIT6920VST/NVRKIT6966VST
|
|
IMAGE SENSOR
|
1/2.8" NOVA+ST401AI/NOVA+ST501AI/NOVA+Sony415
|
|
Video compression
|
H.265+/H.265/H.264 video coding, support dual stream, AVI format; code stream 500k~8M bps adjustable, support PAL and NTSC
|
|
MIN. ILLUMINATION
|
0.01Lux@F1.2(AGC ON), 0Lux IR on
|
|
Frame Rates
|
4MP:2592*1520@25fps/5MP:2592*1944@ 25fps/8MP:3840* 2160@20fps
|
|
VIDEO FRAME RATE
|
Main stream:2880×1620,2592×1520,2560×1440,2048×1520,2304×1296,1920×1080;
|
|
Audio Interface
|
1channel input,support mic or pickup input;1channel output, support headset or amplifier play
|
|
Audio code
|
G.711 CODEC standard, support dual voice talkback, audio and video synchronization
|
|
Network Interface
|
1*RJ45 Ethernet interface,10/100M self-adaption,8KV anti-static electric capacity;support RTSP/DHCP/NTP,GB/T28181,compatible ONVIF
and so on network protocols |
|
IR LED
|
Nano-tech IR LED: 28µ x 4pcs, IR Range: 30M
|
|
FOCAL LENGTH
|
3.6mm
|
|
APERTURE
|
F1.4
|
|
TF
|
support (512G)
|
|
Network interface
|
Built in RJ45network interface support 10M/100M IP DATA
|
|
Smart Alarm
|
humanoid and vehicle detection/motion detection/ video loss/network cable disconnection/IP address conflict
|
|
Power Consumption
|
MAX 5W
|
|
Interface protocol
|
ONVIF Hikvision XM jovision personal protocol
|
|
Network protocol
|
TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP
|
|
INGRESS PROTECTION
|
IP66
|
|
P2P
|
Anfroid IOS
|
|
POWER SUPPLY
|
DC12V±10% OR POE
|
|
NVR Specification
|
|
|
Model
|
NVRKIT7867EST
|
|
System structure
|
Embedded LINUX design, pure hardware decoding, watchdog, hard disk storage, HDMI high-definition display, IP network video access;
|
|
Video input
|
High-definition IPC access, support dual-stream access for each IPC, support automatic search, automatic addition, automatic
recording, automatic preview, plug and play; access bandwidth 64Mbps; |
|
Video output
|
1 HDMI output, 1 VGA output; resolution: 3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×800, 1024×768;
|
|
Video Display
|
Support multi-picture splitting: 1/2/4/6/8/9/10/16/32 pictures real-time preview; Support Seetong client preview; Support phone APP
preview; |
|
Video decoding parameters
|
Support H.265+/H.265/H.264 decoding;
|
|
Video Playback
|
NVR synchronous playback 2 channels (2*8MP); Seetong client remote video playback supports up to 2 channels;
|
|
Video resolution
|
Support 720P/960P/1080P/3MP/4MP/5MP/8MP;
|
|
Motion Detection
|
Depends on the cameras
|
|
User Management
|
Supports up to 38 users locally;
|
|
Video mode
|
Manual>Alarm>Motion Detection>Timing
|
|
Video Search
|
Time point search, calendar search, event search, channel search
|
|
Storage management
|
2 SATA interface, each interface supports a hard disk with a maximum capacity of 14TB;
|
|
Support timing recording, motion detection linkage recording, alarm linkage recording, cross-border recording, area intrusion
recording, intelligent face recording, intelligent license plate recording, intelligent humanoid recording, intelligent vehicle recording |
|
|
Network backup, USB mobile hard disk, USB burning, SATA burning
|
|
|
Video output
|
1 VGA, 1 HDMI
|
|
Loop through output
|
none
|
|
Audio input
|
1
|
|
Audio output
|
1
|
|
Network Interface
|
1 RJ45 WAN port
|
|
USB interface
|
2 USB ports
|
|
Hard disk interface
|
2 SATA interface (each supports up to 14T)
|
|
power supply
|
DC12V
|
|
Power consumption
|
Less than 3W (without hard disk)
|
|
Operating temperature
|
0℃—+55℃
|
|
Working humidity
|
10%—90%
|
